aEIFCondAlphaNeuron Class Reference

#include <CompositeAEIFNeuron.h>

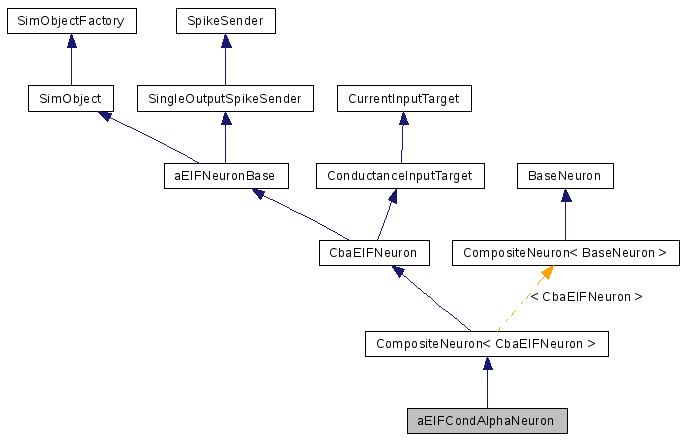

Inheritance diagram for aEIFCondAlphaNeuron:

[legend]

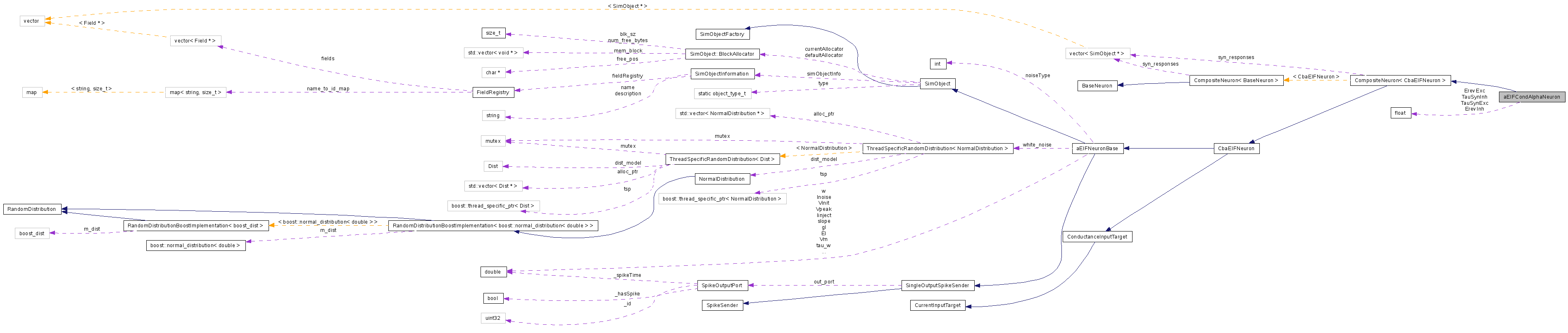

Collaboration diagram for aEIFCondAlphaNeuron:

[legend]

List of all members.

Public Member Functions
	aEIFCondAlphaNeuron (double a=4e-9, double b=0.0805e-9, double Vt=-50.6e-3, double Vr=-70.4e-3, double El=-70.4e-3, double gl=30e-9, double Cm=281e-12, double tau_w=144e-3, double slope=2e-3, double Vpeak=20.0e-3, double Vinit=-60.0e-3, double Inoise=0.0, double Iinject=0.0, double ErevExc=-80e-3, double ErevInh=0.0, float TauSynExc=3e-3, float TauSynInh=3e-3)
virtual int	reset (double dt)
	Reset the Izhi-Neuron.
Public Attributes
float	TauSynExc
	The time constant of the excitatory alpha post synapse [units=sec;range=(0,10);].
float	TauSynInh
	The time constant of the inhibitory alpha post synapse [units=sec;range=(0,10);].
float	ErevExc
	The reversal potential of the excitatory alpha post synapse [units=volts;range=???;].
float	ErevInh
	The reversal potential of the inhibitory alpha post synapse [units=volts;range=???;].

---

Detailed Description

Definition at line 9 of file CompositeAEIFNeuron.h.

---

Constructor & Destructor Documentation

aEIFCondAlphaNeuron::aEIFCondAlphaNeuron	(	double	a = 4e-9,
		double	b = 0.0805e-9,
		double	Vt = -50.6e-3,
		double	Vr = -70.4e-3,
		double	El = -70.4e-3,
		double	gl = 30e-9,
		double	Cm = 281e-12,
		double	tau_w = 144e-3,
		double	slope = 2e-3,
		double	Vpeak = 20.0e-3,
		double	Vinit = -60.0e-3,
		double	Inoise = 0.0,
		double	Iinject = 0.0,
		double	ErevExc = -80e-3,
		double	ErevInh = 0.0,
		float	TauSynExc = 3e-3,
		float	TauSynInh = 3e-3
	)			[inline]

Definition at line 15 of file CompositeAEIFNeuron.h.

References aEIFNeuronBase::a, aEIFNeuronBase::b, aEIFNeuronBase::Cm, aEIFNeuronBase::El, ErevExc, ErevInh, aEIFNeuronBase::gl, aEIFNeuronBase::Iinject, aEIFNeuronBase::Inoise, aEIFNeuronBase::slope, aEIFNeuronBase::tau_w, TauSynExc, TauSynInh, aEIFNeuronBase::Vinit, aEIFNeuronBase::Vpeak, aEIFNeuronBase::Vr, and aEIFNeuronBase::Vt.

---

Member Function Documentation

virtual int aEIFCondAlphaNeuron::reset

(

double

dt

)

[inline, virtual]

Reset the Izhi-Neuron.

Reimplemented from CompositeNeuron< CbaEIFNeuron >.

Definition at line 55 of file CompositeAEIFNeuron.h.

References ErevExc, ErevInh, CompositeNeuron< CbaEIFNeuron >::getInnerSynapse(), CompositeNeuron< BaseNeuron >::reset(), TauSynExc, and TauSynInh.

Here is the call graph for this function:

---

Member Data Documentation

float aEIFCondAlphaNeuron::TauSynExc

The time constant of the excitatory alpha post synapse [units=sec;range=(0,10);].

Definition at line 65 of file CompositeAEIFNeuron.h.

Referenced by aEIFCondAlphaNeuron(), and reset().

float aEIFCondAlphaNeuron::TauSynInh

The time constant of the inhibitory alpha post synapse [units=sec;range=(0,10);].

Definition at line 68 of file CompositeAEIFNeuron.h.

Referenced by aEIFCondAlphaNeuron(), and reset().

float aEIFCondAlphaNeuron::ErevExc

The reversal potential of the excitatory alpha post synapse [units=volts;range=???;].

Definition at line 71 of file CompositeAEIFNeuron.h.

Referenced by aEIFCondAlphaNeuron(), and reset().

float aEIFCondAlphaNeuron::ErevInh

The reversal potential of the inhibitory alpha post synapse [units=volts;range=???;].

Definition at line 74 of file CompositeAEIFNeuron.h.

Referenced by aEIFCondAlphaNeuron(), and reset().

---

The documentation for this class was generated from the following file:

• /home/tnatschl/PCSIM-Sandbox/pcsim/pcsim/simobjects/CompositeAEIFNeuron.h
